Tri Link Bracket
This Tri Link Bracket greatly simplifies fabrication of a custom tri link suspension system. It is designed to weld to a tubular bridge that spans over the differential of an axle. It is nominally sized for 1.75″ diameter tube, and is designed to be easily resized to fit 2″ diameter tube.
This bracket is designed to work with Rubicon Express's RE3794 or RE3795 Tri Link Joints, or similar parts by other manufacturers. The bracket ships as four pieces that are welded together. The nominal spacing is for 2 5/8″ wide joints, with a bolt size of 5/8″. The hole can be easily drilled out for joints using 3/4″ or larger bolts.
The pieces in the bracket kit are laser cut and formed from 1/4″ steel plate.

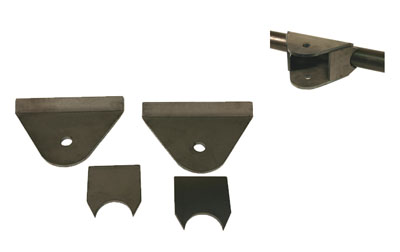

The photo shows the four pieces as well as a shot of it assembled onto a tube.
Bracket is sold individually
